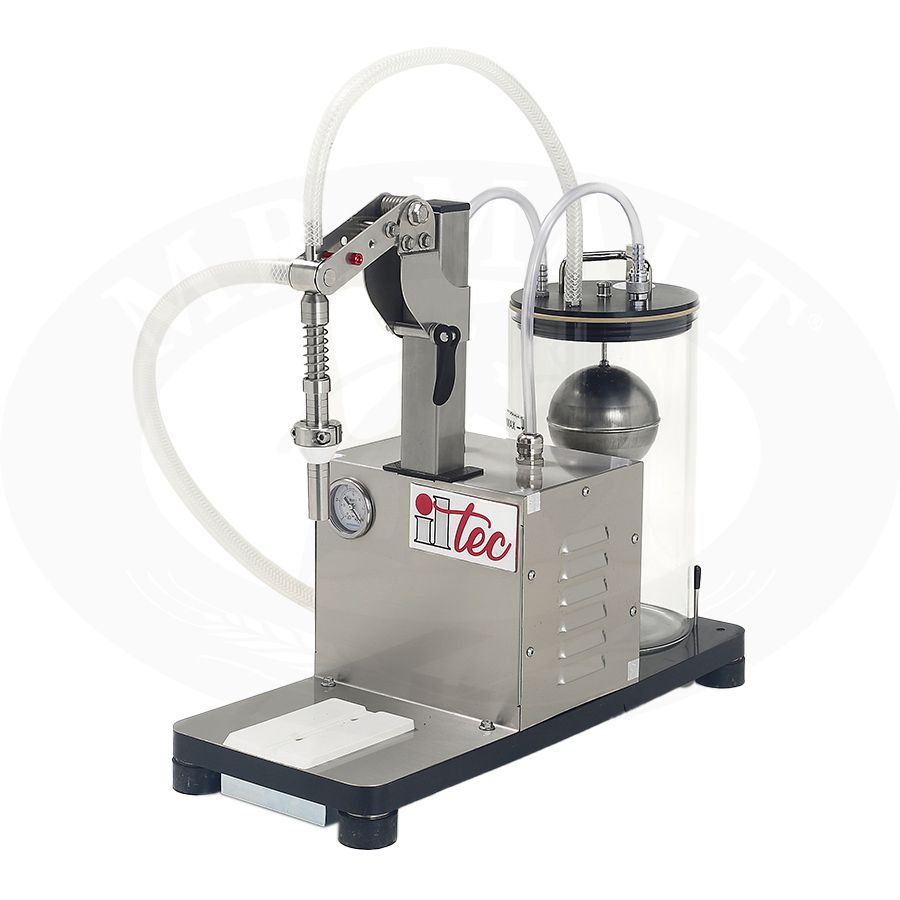

Ultrafiller Vacuum Bottle Filler is constructed entirely of Stainless Steel and it is outfitted with two or four high-efficiency and highly accurate Stainless Steel filling nozzles.
When placing the bottle under the ULTRAFILLER 1 Vacuum Bottle Filler, the fluid is drawn by the vacuum created inside it, without any contact between the liquid and pumps or mechanical components.
ULTRAFILLER 1 about 250 bottles, in perfect hygienic conditions and with no liquid spillage. The filling level is adjustable; once selected, it automatically fills the bottle to the desired level. In addition, the liquid source tank can be placed up to 4 meters below the unit. We sell the Mignon Kit separately from the ULTRAFILLER 1 filling machine, allowing you to adapt the machine to your filling needs. Or we can also provide the ULTRAFILLER mignon filling machine already assembled..
| Cod. | 5735330 |
|---|---|
| Weight in kg. | 20 |
| Voltage | 110-220 V 50-60 hz. - 125 W |
| Height mm | 550 |
| Length mm | 300 |
| Info | 250 bottles/hour |
• Neck Diameter: From 8,5 up to 35 mm
• Bottle Height: From 100 up to 350 mm
• Adjustable filling level with automatic stop
• Up to 250 bottles per hour
• Compact design
• Stainless Steel base, frame and nozzles
• Replaceable nozzles
• Gas spring comfortable height adjustment
• Vacuum gauge
• Recovery tank air filtration system for long vacuum pump life
• Completely accessible and cleanable liquid system
• Mignon bottling heads (for smaller bottles) with 8 -15 mm openings
• Filtration system
